Building A Deep Learning Collection

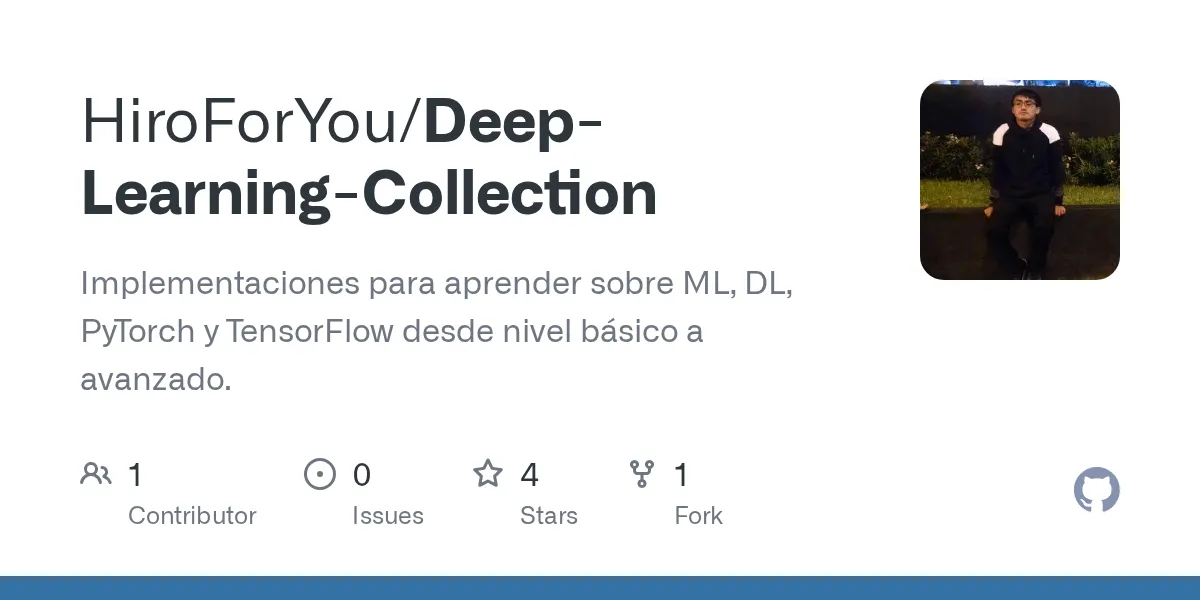

Every time I learned a new architecture, I ended up with the same mess: a notebook copied from a video, a script half-adapted from someone’s repository, and a dataset I could no longer find a month later. So I started putting all of it in one place, cleaned up and runnable. That place is Deep-Learning-Collection: a set of tutorials for current deep learning models in NLP and Computer Vision, which I plan to keep expanding.

Note from the future: this post was written in 2021. Some APIs have moved since then; for example, PyTorch Lightning is now published as the lightning package. The ideas still hold.

Start with the pipeline, not the model

Before writing a single layer, it pays to sketch what the whole pipeline looks like: where the data comes from, how it is preprocessed, how the model is trained, and how you will know whether it worked. Only then is it worth writing the code that makes each step run.

Data is the piece that usually breaks reproducibility, so whenever possible each tutorial ships with a dataset (or a script that downloads it). If you clone the repository, you should be able to run the experiment and get the same results I did.

A clear project structure matters just as much as the pipeline itself:

Two tools I now use everywhere

Beyond PyTorch itself, two libraries changed how I write and understand models: PyTorch Lightning removes most of the training boilerplate, and Captum shows you what a trained model is actually paying attention to. If you work as an ML engineer, both are worth adding to your toolbox.

PyTorch Lightning

Lightning asks you to organize a model into a few well-defined methods, and then it takes care of the training loop, devices, logging and checkpoints. A small autoencoder looks like this:

import os

import pytorch_lightning as pl
import torch
import torch.nn.functional as F
from torch import nn
from torch.utils.data import DataLoader, random_split
from torchvision import transforms
from torchvision.datasets import MNIST


class LitAutoEncoder(pl.LightningModule):
    def __init__(self):
        super().__init__()
        self.encoder = nn.Sequential(nn.Linear(28 * 28, 128), nn.ReLU(), nn.Linear(128, 3))
        self.decoder = nn.Sequential(nn.Linear(3, 128), nn.ReLU(), nn.Linear(128, 28 * 28))

    def forward(self, x):
        # In Lightning, forward defines inference: here, the embedding.
        return self.encoder(x)

    def training_step(self, batch, batch_idx):
        # training_step defines one step of the training loop, independent of forward.
        x, _ = batch
        x = x.view(x.size(0), -1)
        x_hat = self.decoder(self.encoder(x))
        loss = F.mse_loss(x_hat, x)
        self.log('train_loss', loss)
        return loss

    def configure_optimizers(self):
        return torch.optim.Adam(self.parameters(), lr=1e-3)


dataset = MNIST(os.getcwd(), download=True, transform=transforms.ToTensor())
train, val = random_split(dataset, [55000, 5000])

autoencoder = LitAutoEncoder()
trainer = pl.Trainer()
trainer.fit(autoencoder, DataLoader(train), DataLoader(val))

The split that took me a while to appreciate: training_step describes how the model learns, while forward describes how it behaves once it is trained. Keeping them apart makes the same module easy to train, evaluate and deploy.

Captum

A model that scores well is not necessarily looking at the right things. Captum implements attribution methods (Integrated Gradients, Saliency, DeepLift and others) that tell you which parts of the input pushed the model towards its prediction. For an image classifier, that means a heat map of the pixels that mattered:

import numpy as np
from captum.attr import IntegratedGradients
from captum.attr import visualization as viz
from matplotlib.colors import LinearSegmentedColormap

# Gradient-based attribution for the predicted class.
integrated_gradients = IntegratedGradients(model)
attributions_ig = integrated_gradients.attribute(input, target=pred_label_idx, n_steps=200)

# Overlay the attributions on the original image.
default_cmap = LinearSegmentedColormap.from_list(
    'custom blue', [(0, '#ffffff'), (0.25, '#000000'), (1, '#000000')], N=256
)

_ = viz.visualize_image_attr(
    np.transpose(attributions_ig.squeeze().cpu().detach().numpy(), (1, 2, 0)),
    np.transpose(transformed_img.squeeze().cpu().detach().numpy(), (1, 2, 0)),
    method='heat_map',
    cmap=default_cmap,
    show_colorbar=True,
    sign='positive',
    outlier_perc=1,
)

If the heat map lights up the background instead of the object, you have learned something important about your data that no accuracy number would have told you.

How the tutorials are organized

The tutorials are split by level. The basic ones are for people taking their first steps in deep learning; the advanced ones assume you are already comfortable debugging and optimizing a model.

Part of the code is my own, and part of it was compiled from YouTube channels, papers and their companion repositories. I try to credit every original author, so please go back to those sources too. And feel free to modify anything you find; that is the whole point of sharing it.

Over time I want to add more models and publish the trained weights, so you can skip straight to experimenting.

Where I would start

If you only have time for a few, these are the models I consider essential for anyone getting serious about deep learning:

• Vision Transformer (ViT): attention applied to image patches, and the reason transformers took over vision.
• Image Captioning: a vision encoder and a language decoder working together.
• U-Net: the encoder-decoder with skip connections behind most segmentation work.

If any of them helps you, a star on the repository is the best way to tell me, and it keeps me adding new ones.
